Value of shear wave elastography in the early diagnosis of DPN in patients with type 2 diabetes mellitus

Zhang Yanji; Tang Mingyuan; Jian Yang; Wu Xiuping; Ma Lihong; Cai Silang; Deng Chengliang; Wei Zairong

doi:10.3760/cma.j.cn501225-20241230-00513

Article Contents

Article Navigation > CHINESE JOURNAL OF BURNS AND WOUNDS > > Accepted Manuscript

Zhang Yanji,Tang Mingyuan,Jian Yang,et al.Value of shear wave elastography in the early diagnosis of DPN in patients with type 2 diabetes mellitus[J].Chin J Burns Wounds,2026,42(7):1-10.DOI: 10.3760/cma.j.cn501225-20241230-00513.

Citation:

PDF( 3148 KB)

Value of shear wave elastography in the early diagnosis of DPN in patients with type 2 diabetes mellitus

doi: 10.3760/cma.j.cn501225-20241230-00513

1.
Department of Burns and Plastic Surgery, Affiliated Hospital of Zunyi Medical University, Zunyi 563000, China
2.
Department of Ultrasound, Affiliated Hospital of Zunyi Medical University, Zunyi 563000, China
3.
Department of Emergency, Kweichow Moutai Hospital, Zunyi 564512, China
4.
Department of Medical Education, Kweichow Moutai Hospital, Zunyi 564512, China

Funds:

Collaborative Innovation Center of Chinese Ministry of Education 2020-39

Regional Science Fund Project of National Natural Science Foundation of China 8236090280

Scientific Research and Talent Development Fund of Kweichow Moutai Hospital mtyk2022-13

More Information

Corresponding author: Wei Zairong, Email: zairongwei@163.com
Received Date: 2024-12-30
Available Online: 2026-06-29

Abstract

Abstract

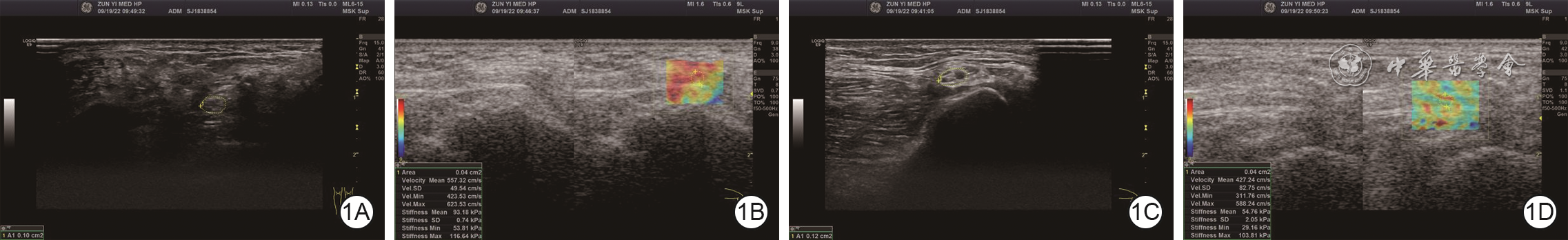

Objective To investigate the value of shear wave elastography (SWE) in the early diagnosis of diabetic peripheral neuropathy (DPN) in patients with type 2 diabetes mellitus. Methods This study was a diagnostic case-control study. From May 2021 to October 2022, 68 patients with type 2 diabetes mellitus who met the inclusion criteria were admitted to the Affiliated Hospital of Zunyi Medical University, including 45 males and 23 females, aged (57±10) years. According to the presence or absence of DPN, the patients were divided into DPN group (38 patients) and non-DPN group (30 patients). During the same period, 30 healthy volunteers who underwent physical examinations at the health examination center of the hospital were recruited as healthy control group, including 19 males and 11 females, aged (56±10) years. Cross-sectional areas of the bilateral common peroneal nerves and tibial nerves measured using a color Doppler ultrasonography system in two-dimensional ultrasonography mode, and the stiffness of the bilateral common peroneal nerves and tibial nerves measured in SWE mode were compared among volunteers in healthy control group and two groups of patients at admission. Independent risk factors for the development of DPN were screened among the participants in the three groups. Among the two groups of patients, receiver operating characteristic curves were used to evaluate the diagnostic value of common peroneal nerve stiffness, common peroneal nerve cross-sectional area, tibial nerve stiffness, and tibial nerve cross-sectional area for DPN. The correlations of common peroneal nerve stiffness and common peroneal nerve cross-sectional area with the Toronto clinical scoring system (TCSS) score were analyzed in DPN group of patients. Results At admission, the cross-sectional areas of the bilateral common peroneal nerves of patients in DPN group were significantly larger than those of patients in non-DPN group and volunteers in healthy control group (P<0.05); the cross-sectional area of the right tibial nerve of patients was also significantly greater in DPN group than in non-DPN group (P<0.05). The stiffness of the bilateral tibial nerves and common peroneal nerves of patients in both non-DPN group and DPN group was significantly greater than that of volunteers in healthy control group (P<0.05). The stiffness of the left tibial nerve and the bilateral common peroneal nerves of patients was significantly greater in DPN group than in non-DPN group (P<0.05). The results of multivariable ordinal logistic regression analysis showed that common peroneal nerve stiffness, tibial nerve stiffness, and common peroneal nerve cross-sectional area were independent risk factors for the development of DPN among the participants in the three groups (with OR of 0.91, 0.93, and 0.75, respectively, 95%CI of 0.89 to 0.95, 0.89 to 0.97, and 0.58 to 0.96, respectively, P<0.05). Among the two groups of patients, common peroneal nerve stiffness yielded the largest area under the curve for diagnosing DPN, which was 0.85 (with 95%CI of 0.74 to 0.92). The optimal cutoff value was 75.29 kPa, with a sensitivity of 76.32% and a specificity of 90.00% at the optimal cutoff value. In DPN group, common peroneal nerve stiffness and common peroneal nerve cross-sectional area of patients were significantly positively correlated with the TCSS score (with r_s values of 0.83 and 0.89, respectively, P<0.05). Conclusions SWE performs well in assessing peripheral nerve stiffness in patients with type 2 diabetes mellitus. In particular, common peroneal nerve stiffness measured using SWE has relatively high diagnostic value for complication of DPN in patients and is correlated with clinical severity. It may serve as an auxiliary imaging marker for the early screening and severity assessment of DPN.
- Diabetes mellitus,
- Tibial nerve,
- Diagnosis,
- Shear wave elastography,
- Common peroneal nerve,
- Nerve stiffness,
- Nerve cross-sectional area

FullText(HTML)

References(37)

References

[1]	SavelieffMG,ElafrosMA,ViswanathanV,et al.The global and regional burden of diabetic peripheral neuropathy[J].Nat Rev Neurol,2025,21(1):17-31.DOI: 10.1038/s41582-024-01041-y.
[2]	DillonBR,AngL,Pop-BusuiR.Spectrum of diabetic neuropathy: new insights in diagnosis and treatment[J].Annu Rev Med,2024,75:293-306.DOI: 10.1146/annurev-med-043021-033114.
[3]	李震寒,陈中沛,余晓霞.糖尿病周围神经病变诊断和治疗的研究进展[J].重庆医科大学学报,2025,50(5):574-578.DOI: 10.13406/j.cnki.cyxb.003772.
[4]	中国老年医学学会烧创伤分会,中华医学会烧伤外科学分会,中国医师协会创面修复专业委员会.糖尿病足溃疡合并下肢血管病变的外科诊疗全国专家共识(2024版)[J].中华烧伤与创面修复杂志,2024,40(3):206-220.DOI: 10.3760/cma.j.cn501225-20231122-00202.
[5]	王欣,王银煜,戚建武.糖尿病足溃疡创面的发病机制及治疗的研究[J].中华烧伤与创面修复杂志,2025,41(10):928-936.DOI: 10.3760/cma.j.cn501225-20250124-00039.
[6]	WangR,LiB,DongM,et al.Targeting oxidative damage in diabetic foot ulcers: integrative strategies involving antioxidant drugs and nanotechnologies[J/OL].Burns Trauma,2025,13:tkaf020[2026-01-30].https://pubmed.ncbi.nlm.nih.gov/40718700/.DOI: 10.1093/burnst/tkaf020.
[7]	ZhaoS,HuX,ZhaoY,et al.Hydrogel-based therapies for diabetic foot ulcers: recent developments and clinical implications[J/OL].Burns Trauma,2025,13:tkae084[2026-01-30].https://pubmed.ncbi.nlm.nih.gov/39917278/.DOI: 10.1093/burnst/tkae084.
[8]	GuoL,XiaoD,XingH,et al.Engineered exosomes as a prospective therapy for diabetic foot ulcers[J/OL].Burns Trauma,2024,12:tkae023[2026-01-30].https://pubmed.ncbi.nlm.nih.gov/39026930/.DOI: 10.1093/burnst/tkae023.
[9]	王金海,蒋凯,韩培,等.依帕司他联合羟苯磺酸钙治疗糖尿病周围神经病变的效果及其对氧化应激反应的影响[J].中华内分泌外科杂志,2023,17(3):332-336.DOI: 10.3760/cma.j.cn.115807-20221107-00310.
[10]	BrilV,PerkinsBA.Validation of the Toronto Clinical Scoring System for diabetic polyneuropathy[J].Diabetes Care,2002,25(11):2048-2052.DOI: 10.2337/diacare.25.11.2048.
[11]	EnglandJD,GronsethGS,FranklinG,et al.Distal symmetric polyneuropathy: a definition for clinical research: report of the American Academy of Neurology, the American Association of Electrodiagnostic Medicine, and the American Academy of Physical Medicine and Rehabilitation[J].Neurology,2005,64(2):199-207.DOI: 10.1212/01.WNL.0000149522.32823.EA.
[12]	GalieroR,CaturanoA,VetranoE,et al.Peripheral neuropathy in diabetes mellitus: pathogenetic mechanisms and diagnostic options[J].Int J Mol Sci,2023,24(4):3554.DOI: 10.3390/ijms24043554.
[13]	ZhuJ,HuZ,LuoY,et al.Diabetic peripheral neuropathy: pathogenetic mechanisms and treatment[J].Front Endocrinol (Lausanne),2023,14:1265372.DOI: 10.3389/fendo.2023.1265372.
[14]	TakeshitaY,SatoR,KandaT.Blood-nerve barrier (BNB) pathology in diabetic peripheral neuropathy and in vitro human BNB model[J].Int J Mol Sci,2020,22(1):62.DOI: 10.3390/ijms22010062.
[15]	BaptistaFI,PinheiroH,GomesCA,et al.Impairment of axonal transport in diabetes: focus on the putative mechanisms underlying peripheral and central neuropathies[J].Mol Neurobiol,2019,56(3):2202-2210.DOI: 10.1007/s12035-018-1227-1.
[16]	HuangH,WuS.Application of high-resolution ultrasound on diagnosing diabetic peripheral neuropathy[J].Diabetes Metab Syndr Obes,2021,14:139-152.DOI: 10.2147/DMSO.S292991.
[17]	NarayanS,GoelA,SinghAK,et al.High resolution ultrasonography of peripheral nerves in diabetic patients to evaluate nerve cross sectional area with clinical profile[J].Br J Radiol,2021,94(1121):20200173.DOI: 10.1259/bjr.20200173.
[18]	GoyalK,AggarwalP,GuptaM.Ultrasound evaluation of peripheral nerves of the lower limb in diabetic peripheral neuropathy[J].Eur J Radiol,2021,145:110058.DOI: 10.1016/j.ejrad.2021.110058.
[19]	SenaraiT,PratipanawatrT,YurasakpongL,et al.Cross-sectional area of the tibial nerve in diabetic peripheral neuropathy patients: a systematic review and meta-analysis of ultrasonography studies[J].Medicina (Kaunas),2022,58(12):1696.DOI: 10.3390/medicina58121696.
[20]	JiangW,HuangS,TengH,et al.Diagnostic performance of two-dimensional shear wave elastography for evaluating tibial nerve stiffness in patients with diabetic peripheral neuropathy[J].Eur Radiol,2019,29(5):2167-2174.DOI: 10.1007/s00330-018-5858-4.
[21]	HeY,XiangX,ZhuBH,et al.Shear wave elastography evaluation of the median and tibial nerve in diabetic peripheral neuropathy[J].Quant Imaging Med Surg,2019,9(2):273-282.DOI: 10.21037/qims.2019.02.05.
[22]	PradhanDR,SaxenaS,KantR,et al.Shear wave elastography of tibial nerve in patients with diabetic peripheral neuropathy-a cross-sectional study[J].Skeletal Radiol,2024,53(3):547-554.DOI: 10.1007/s00256-023-04448-8.
[23]	TanS,ZhaoS,JinZ,et al.Feasibility of viscosity imaging and shear wave elastography for diagnosing diabetic peripheral neuropathy[J].Korean J Radiol,2025,26(11):1075-1084.DOI: 10.3348/kjr.2025.0690.
[24]	PengRL,JiangYF,ShenHL,et al.Diagnostic value of shear wave elastography for diabetic peripheral neuropathy: comparison between junior radiologists and senior radiologists[J].BMC Med Imaging,2025,25(1):512.DOI: 10.1186/s12880-025-02061-w.
[25]	中华医学会糖尿病学分会.中国2型糖尿病防治指南(2020年版)[J].中华糖尿病杂志,2021,13(4):315-409.DOI: 10.3760/cma.j.cn115791-20210221-00095.
[26]	UptonAR,McComasAJ.The double crush in nerve entrapment syndromes[J].Lancet,1973,2(7825):359-362.DOI: 10.1016/s0140-6736(73)93196-6.
[27]	LaiZH,SheBY,SongML,et al.Role of nerve ultrasound and shear wave elastography in stratified diagnosis of diabetic peripheral neuropathy[J].Medicine (Baltimore),2025,104(45):e45492.DOI: 10.1097/MD.0000000000045492.
[28]	XiaX,DaiL,ZhouH,et al.Assessment of peripheral neuropathy in type 2 diabetes by diffusion tensor imaging: a case-control study[J].Eur J Radiol,2021,145:110007.DOI: 10.1016/j.ejrad.2021.110007.
[29]	WangX,LuoL,XingJ,et al.Assessment of peripheral neuropathy in type 2 diabetes by diffusion tensor imaging[J].Quant Imaging Med Surg,2022,12(1):395-405.DOI: 10.21037/qims-21-126.
[30]	YangY,ZhaoB,WangY,et al.Diabetic neuropathy: cutting-edge research and future directions[J].Signal Transduct Target Ther,2025,10(1):132.DOI: 10.1038/s41392-025-02175-1.
[31]	CarmichaelJ,FadaviH,IshibashiF,et al.Advances in screening, early diagnosis and accurate staging of diabetic neuropathy[J].Front Endocrinol (Lausanne),2021,12:671257.DOI: 10.3389/fendo.2021.671257.
[32]	ErolK,TopaloğluUS,GölMF.Frequency of carpal tunnel syndrome and hand dysfunction in prediabetes: a cross-sectional, controlled study[J].Turk J Phys Med Rehabil,2022,68(1):62-69.DOI: 10.5606/tftrd.2022.6828.
[33]	JendeJ,KenderZ,MooshageC,et al.Diffusion tensor imaging of the sciatic nerve as a surrogate marker for nerve functionality of the upper and lower limb in patients with diabetes and prediabetes[J].Front Neurosci,2021,15:642589.DOI: 10.3389/fnins.2021.642589.
[34]	ZieglerD,PapanasN,SchnellO,et al.Current concepts in the management of diabetic polyneuropathy[J].J Diabetes Investig,2021,12(4):464-475.DOI: 10.1111/jdi.13401.
[35]	RøikjerJ,MørchCD,EjskjaerN.Diabetic peripheral neuropathy: diagnosis and treatment[J].Curr Drug Saf,2021,16(1):2-16.DOI: 10.2174/1574886315666200731173113.
[36]	ElafrosMA,AndersenH,BennettDL,et al.Towards prevention of diabetic peripheral neuropathy: clinical presentation, pathogenesis, and new treatments[J].Lancet Neurol,2022,21(10):922-936.DOI: 10.1016/S1474-4422(22)00188-0.
[37]	AtmacaA,KetenciA,SahinI,et al.Expert opinion on screening, diagnosis and management of diabetic peripheral neuropathy: a multidisciplinary approach[J].Front Endocrinol (Lausanne),2024,15:1380929.DOI: 10.3389/fendo.2024.1380929.
